Cherry Bomb Vending Machine

// the case

problem

Selling handmade pieces in residential buildings means standing by a table for hours or trusting an honour box. A conventional vending machine does not fix it: a card reader charges a monthly fee and a per-transaction cut that an R$ 8.50 hair clip cannot absorb, and cash has to be collected and secured. The machine needed to sell twenty distinct items, unattended, at R$ 5.50 to R$ 24.50, with no hardware in the customer's path.

solution

The payment terminal was removed from the machine and replaced by a sticker. A QR code on the glass opens a mobile storefront that mirrors the machine's physical layout — a 4×5 grid where every card is a real coil, addressed A1 to E4. The customer fills a bag across several slots and pays one Pix for the whole cart: the backend totals it server-side, asks Mercado Pago for a single charge, and waits. Nothing about the order is trusted until the webhook reports approved.

impact

Not measured, and deliberately not claimed. The software path runs in production end to end — storefront, Pix charge, confirmation webhook, stock subtraction — but physical dispensing is not implemented: the ESP32 firmware file is empty and there is no MQTT publisher. The honest summary is a payment and inventory system working in production, attached to a machine that cannot yet turn its coils. Any figure about units sold would be fiction.

// my role

Sole author, over four days in April 2026 — product definition, FastAPI backend, PostgreSQL schema, Mercado Pago integration and webhook, Cloudinary image pipeline, the customer storefront, the admin panel, the visual identity, and deployment. The hardware protocol is mine too; the firmware that will consume it is not written yet.

// overview

// engineering notes

• One Pix for a cart, not one per item

  The natural implementation — a charge per product — would multiply round-trips to Mercado Pago and force the customer through several bank confirmations for a single purchase. Instead the backend totals the cart itself using decimal arithmetic with half-up rounding before creating one charge, and stores the item list as JSON alongside the payment record. That stored list is what the approval step later reads to know which coils to turn, which is why a single Pix can drive several motors.

• The webhook is the only thing that can move stock

  Stock is never decremented on the client, at checkout, or on any optimistic path. The front-end caps the plus button at the live stock figure purely as courtesy; the authoritative write happens only when Mercado Pago's webhook reports approved, in one guarded SQL update per item. The guard floors the result at zero, so a duplicated webhook — which payment providers do send — cannot drive inventory negative. A customer who abandons the page mid-payment never removes stock that was not paid for.

• Designed for a stranger holding a phone at a machine

  The interface assumes one context and refuses to serve any other. Mobile-only, because the only entry point is a QR code on glass. No hover rules exist in the stylesheet at all — only an active state that presses the element into its own shadow, so every tap answers back. Sold-out slots are not hidden but dimmed and desaturated with touch removed, so the on-screen grid keeps matching the physical machine the customer is looking at. Quantity control collapses into a strip inside the card, which keeps a twenty-slot grid usable on a phone without opening a modal per product.

• Restocking without a developer

  A password-protected admin panel lets the operator rename products, change prices, set stock and photograph items straight from their phone; the upload goes through the backend to Cloudinary, is cropped server-side to a square with automatic gravity, and the resulting URL is written back to the product row. Without this the project would have needed a developer present at every restock, which would have made the machine unusable in practice.

• The hardware boundary was specified before the hardware existed

  The MQTT contract — topic, JSON shape, per-motor quantity and turn duration — was written and fixed while the ESP32 was still in shipping. That let the whole payment and inventory path be built, deployed and tested against a defined seam instead of a guess. It is also the honest boundary of what is done: the contract exists, the firmware does not.

// screens

• Every card is a real coil — the grid on screen has to match the glass the customer is looking at.

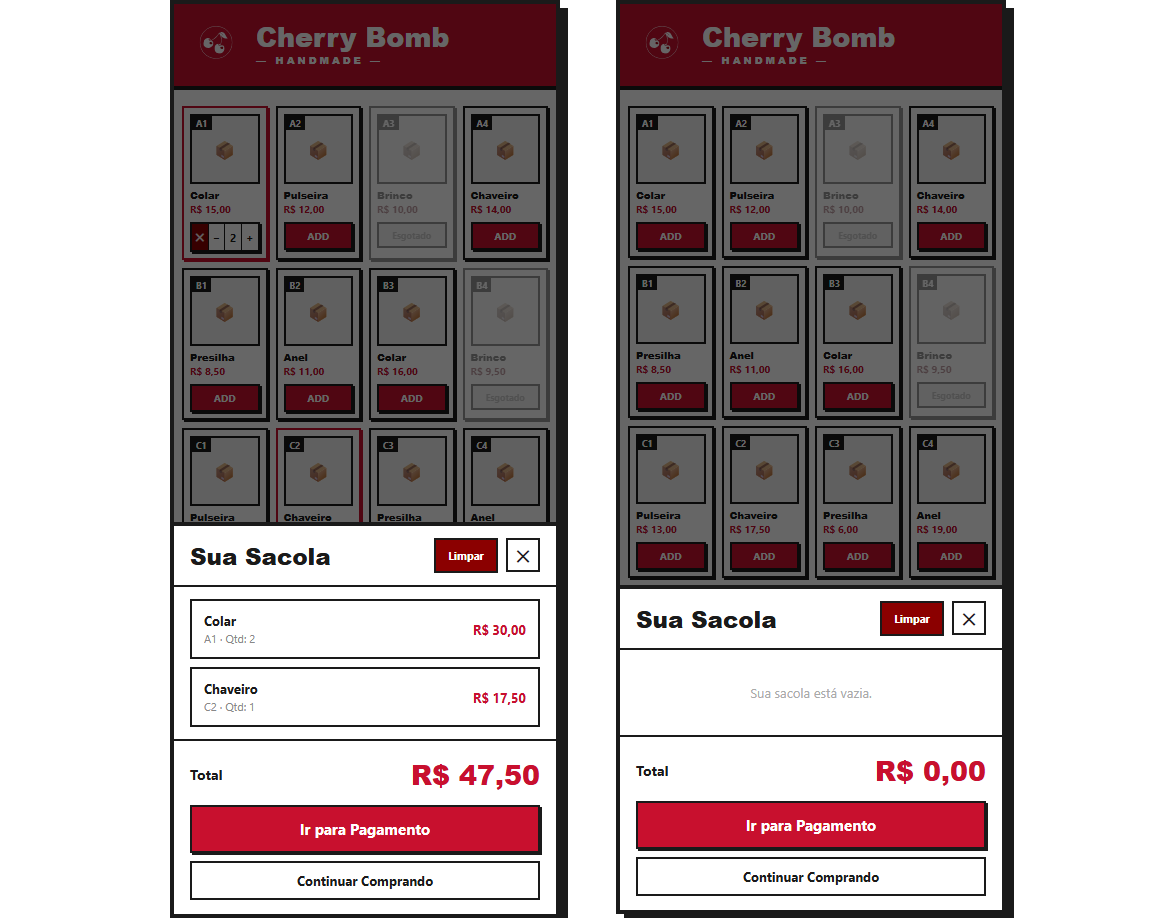

• Several slots, one bag, one charge — the list here is what later tells the machine which motors to turn.

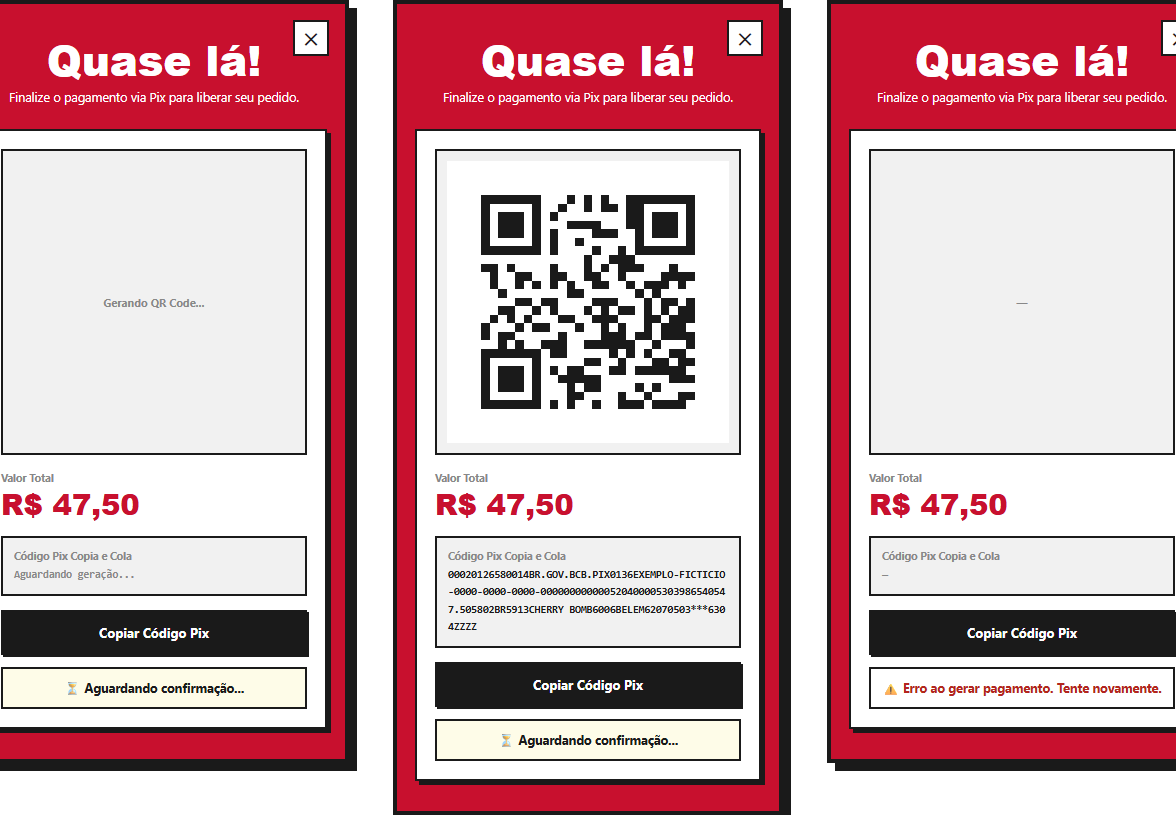

• One charge for the whole bag, then polling — the customer's own banking app is the payment terminal.

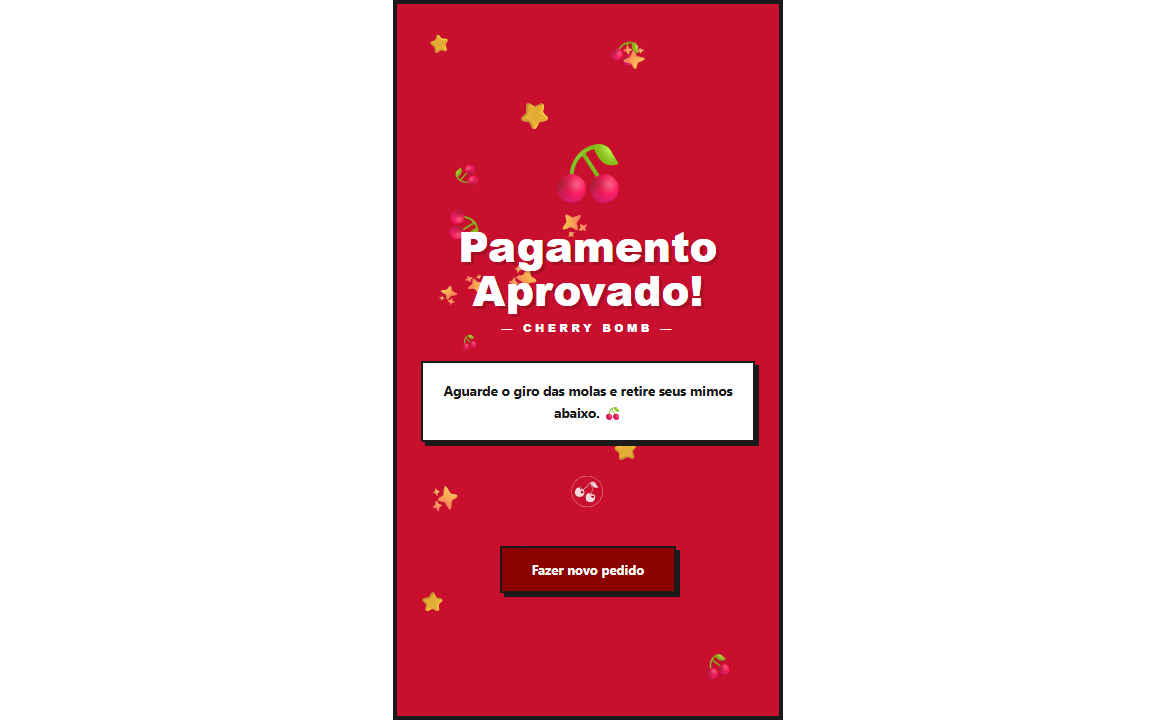

• Where the software ends today: payment approved and stock updated, but the coils do not turn yet.

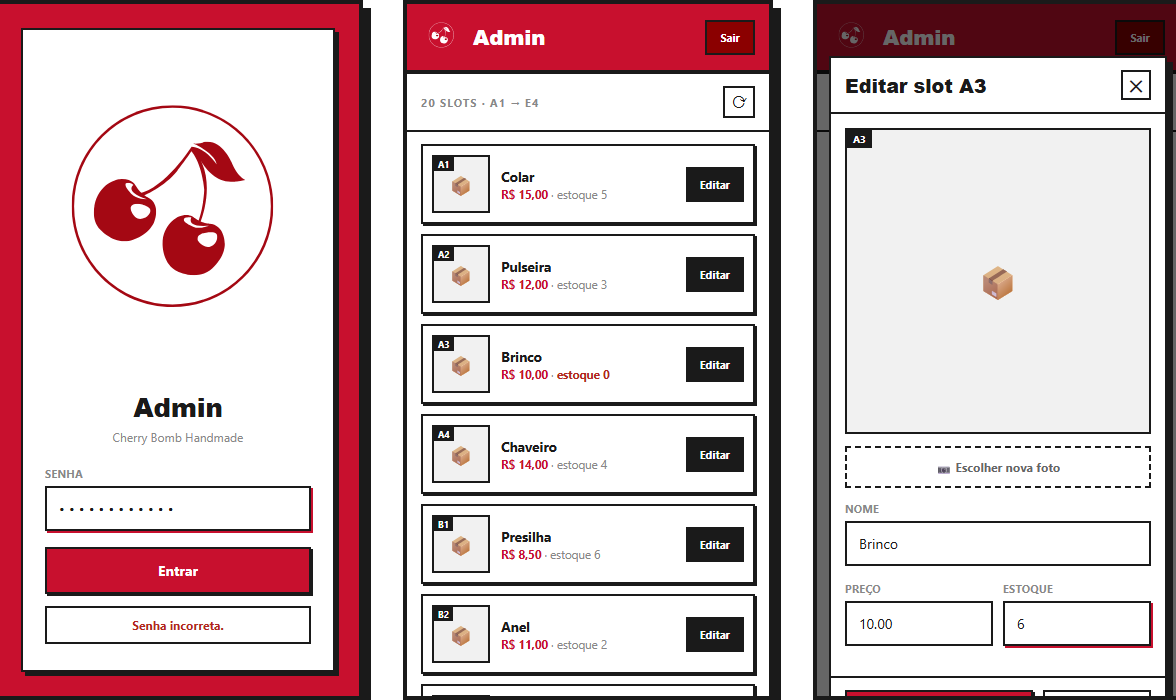

• So restocking never needs a developer — the operator repoints a slot from their own phone.

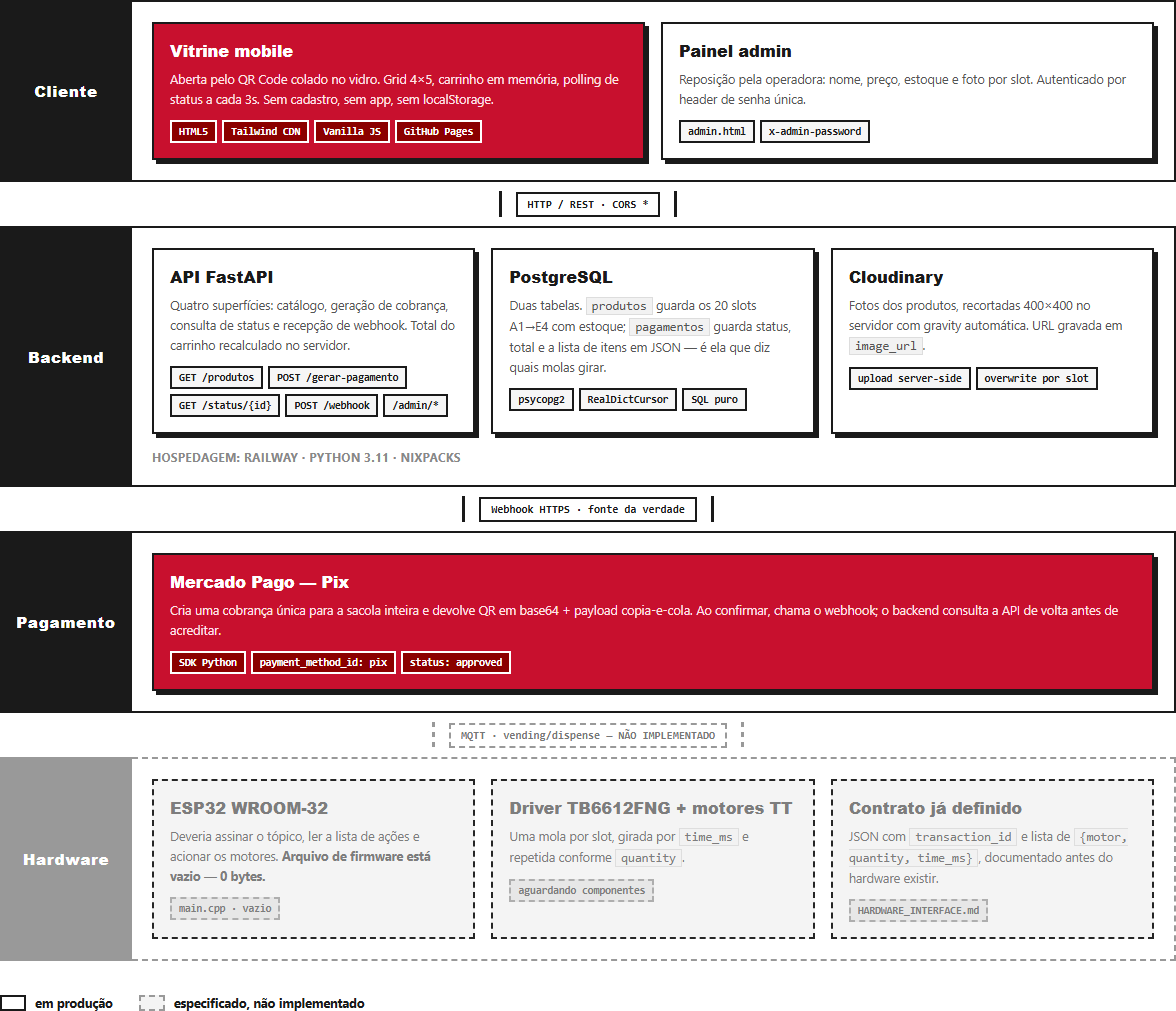

• Three layers in production and one still on paper — the dashed row is the honest part of the diagram.

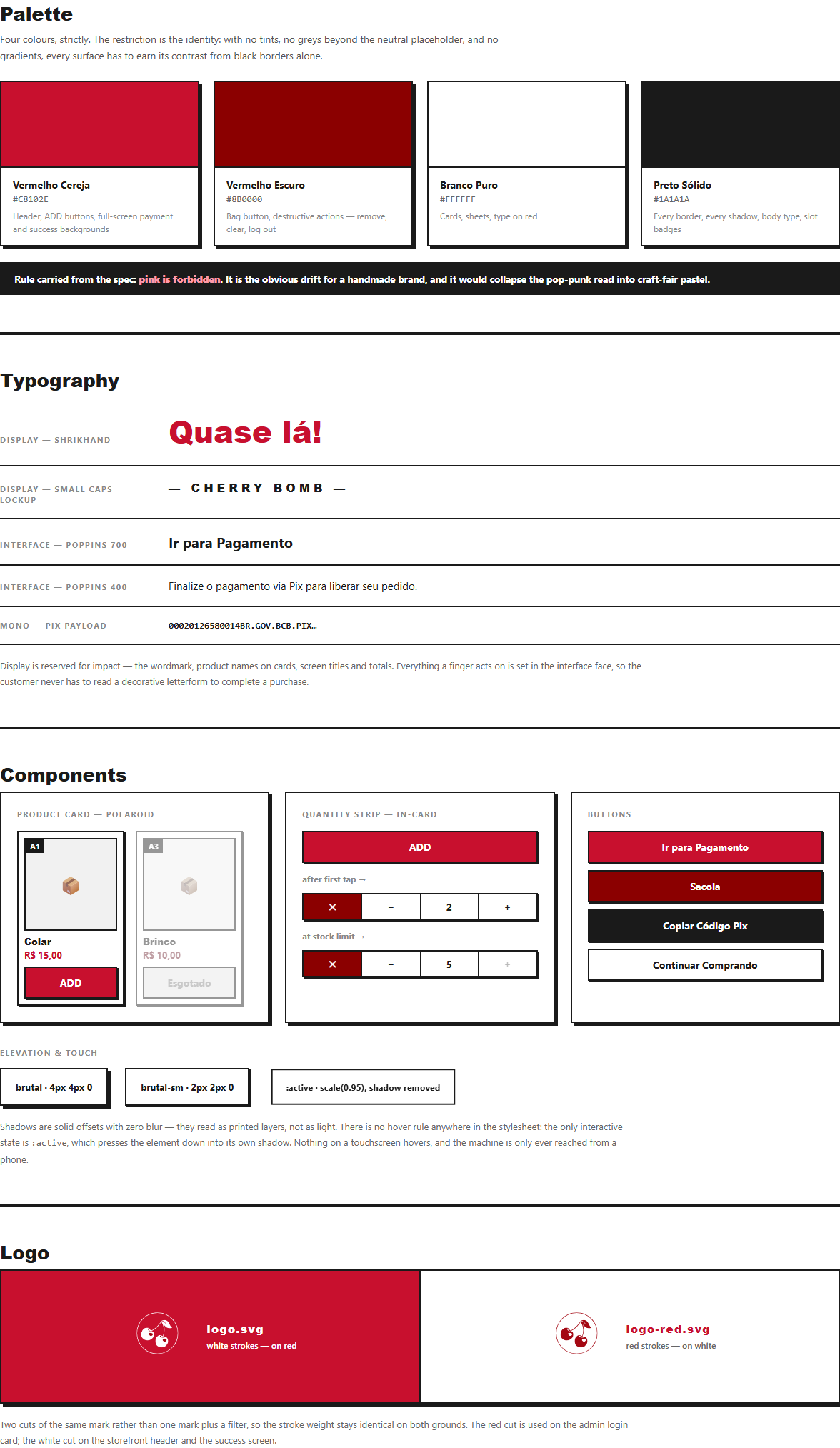

• Four colours, 2px borders, zero-blur shadows, and no hover state anywhere — the restriction is the identity.
